4-Sided Belt Sander (All-Side Belt Sanding Machine, Four Side Wood Sander)

4-Sided Belt Sander

The 4-sided belt sander is equipped with durable sanding rollers, making it ideal for processing different irregular wooden workpieces and finishing a super fine sealer sanding. It is especially suitable for processing long strip shaped irregular workpieces, such as the surfaces of dining room tables and chairs for a smooth, fine surface. The sander is also PLC controlled, making it easy to learn, operate, and adjust. It will sand different wood types according to different materials.

Specification
Spindle horsepower 1.5KW×4
Feeding horsepower 180W×6
Feeding speed(inverter speed) 6-15m/min
Minimum sanding length 450mm
Maximum sanding width 100mm
Maximum sanding height 100mm
coir dimensions 1060×150mm
Vacuuming mouth size 4 inch×2
Mechanical dimensions(L×W×H) 1450×1400×1400mm
Machine weight 350KG
Components exhibition

Main components of 4-sided brush sander like sanding motor, rubber feeder roller, electric control, frequency converter, etc. are from international suppliers with high quality with great stability and safety.

    1. 4-Sided Belt Sander
    2. UNIS feeder reducer motor
    1. 4-Sided Belt Sander
    2. Rexroth, German, frequency converter
    1. 4-Sided Belt Sander

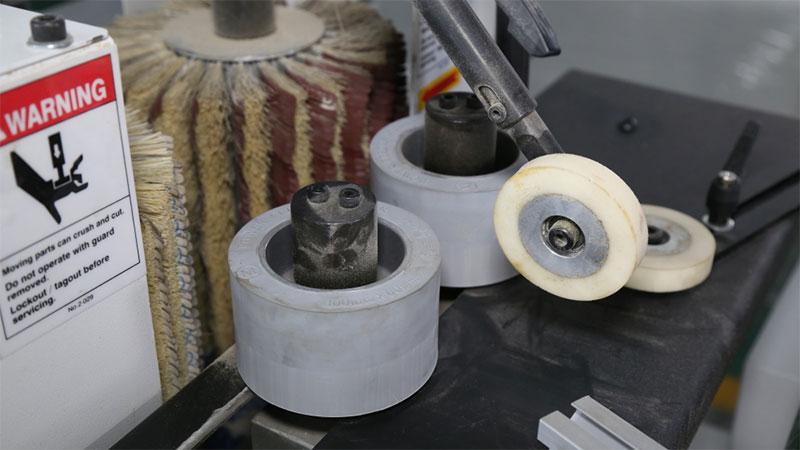

    2. Taiwan Mei Na rubber roller
Send an Inquiry

If you are interested in this product, feel free to contact us anytime!

Other Products
    1. Double Sided Brush Sanders
    2. Double Sided Brush Sanders

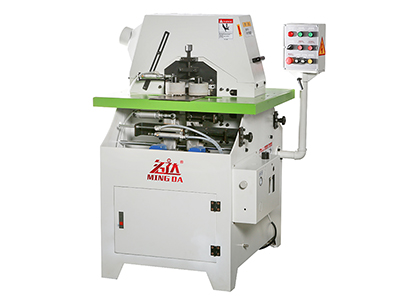

    1. Edge Sander
