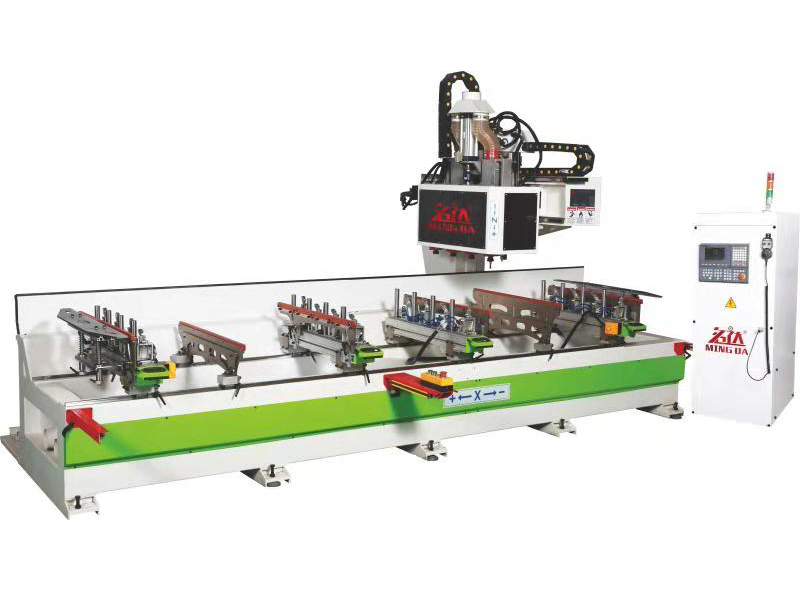

CNC Slot Milling Machine

Our CNC slot milling machine is an affordable, high speed and accurate machine suitable for threading, grooving and drilling of a variety of wood furniture, and is designed with 4 different positions to ensure a continuous, efficient timber machining. The CNC slot milling machine also utilizes an advanced, numerical control system, making it consistently accurate and easy to operate.

Specification

Model	MD-3841	MD-3842(4+4)
Maximum width of machining	X Axis: 3800mm	X Axis：3800mm/3600mm
	Y Axis: 450mm/120mm	Y Axis: 450mm/120mm
	Z Axis: 140mm	Z Axis: 140mm
Maximum speed of movement	X Axis: 60m/min	X Axis: 60m/Min
	Y Axis: 30m/min	Y Axis: 30m/Min
	Z Axis: 15m/min	Z Axis: 15m/Min
Maximum machining speed	10m/min	10m/min
Spindle power	3.7KW*4	3.7KW4+2.2kw4
Spindle speed	18000r/min	18000r/min
Total installed power	19KW	28KW
Total weight	2950kg	3050kg
Installation dimension	450028502150mm	450028502150mm
