Automatic Hole Boring Machine, Wood Triangle Drilling Machine

Automatic Hole Boring Machine, Wood Triangle Drilling Machine

Automatic Hole Boring Machine, Wood Triangle Drilling Machine

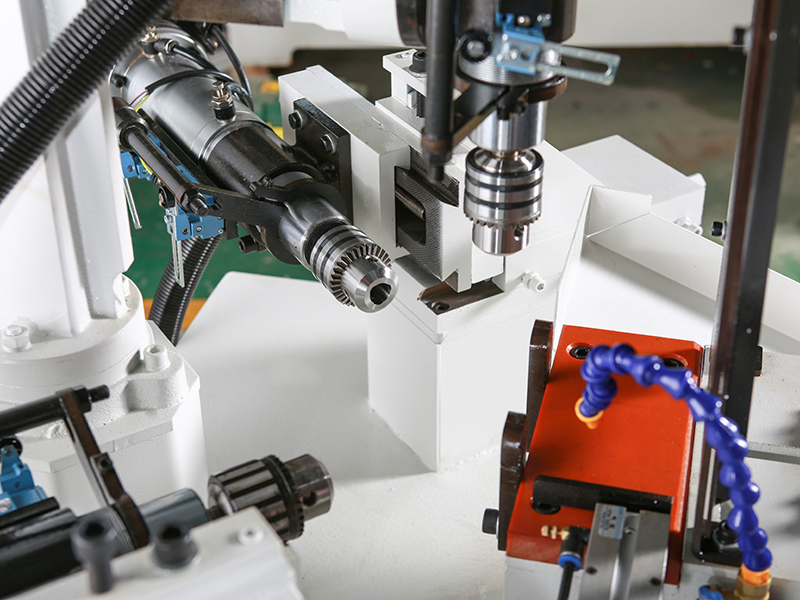

The automatic hole boring machine is often used to drill holes on all sizes of wood triangles. It uses programmable logic controller (PLC) to ensure the operation is easy, safe and adjustable. Its main components all come from world-famous suppliers, such as Schneider, ensuring the safe and stable machine operation.

Specification
Model MD-04
Spindle number 3pcs
spindle motor 1.5kW*3
Spindle stroke 80mm
Max. processing width 35-90mm
Max. processing length 70-150mm
Processing thickness 20-30mm
Mechanical dimensions (L*W*H) 1200*1800*2100mm
Machine weight 250kg
Send an Inquiry

If you are interested in this product, feel free to contact us anytime!

Other Products

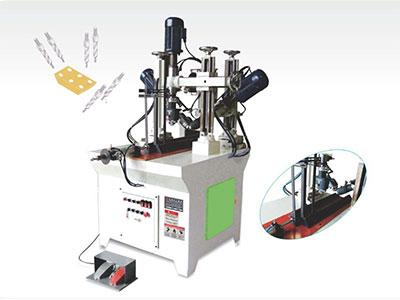

    1. Automatic Hole Boring Machine, Wood Drilling Machine
    2. Automatic Hole Boring Machine, Wood Drilling Machine
    1. Automatic Mortising Machines
    2. Automatic Mortising Machines

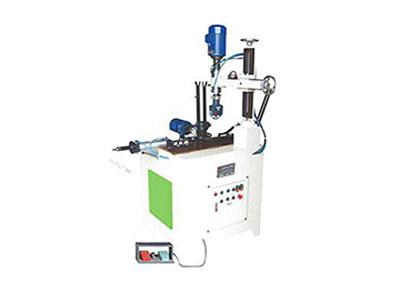

    1. Automatic Spindle Line Boring Machine
