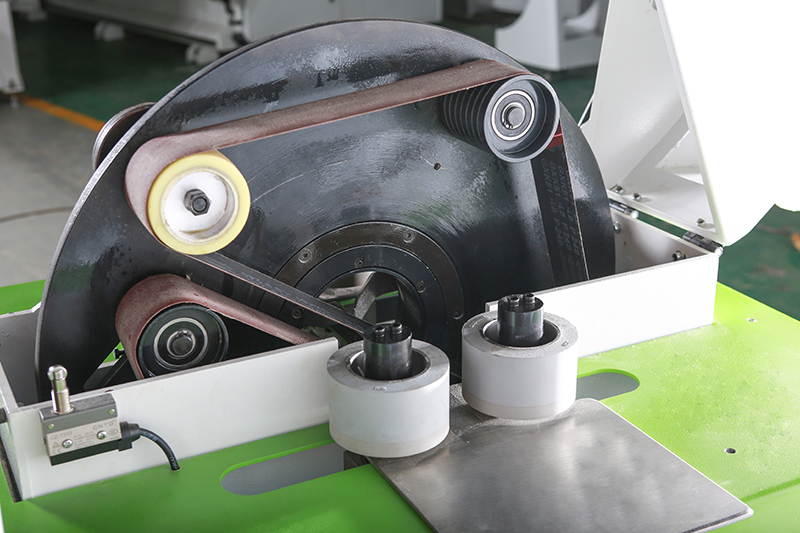

Edge Sander

Single Sided Belt Sander

Edge sanders are used to process different, irregularly shaped wooden workpieces and sand their edges. They are especially suited to processing long strip workpieces like dining table legs and chair legs. After workpieces have been shaped, this sander will carry out sanding to achieve round, smooth, and perfect edges. PLC controlled, this sander is easy to operate, learn, and adjust. It is capable of sanding different edges according to different materials, adjusting the edges within 1 to 3mm.

Main components of the edge sander, including the motor, rubber feeding roller, electrical control components, and frequency convertor, are imported worldwide with a high quality, high stability, and exceptional safety.

Specification
Model MD-40
Spindle horsepower 2.2KW×1
Feeding horsepower 180W×4
Feeding speed(inverter speed) 6-15m/min
Minimum sanding length 370mm
Maximum sanding width 70mm
Maximum sanding height 70mm
coir dimensions 1260×68mm
Vacuuming mouth size 4 inch×1
Mechanical dimensions(L×W×H) 1050×950×1400mm
Machine weight 280KG
Send an Inquiry

If you are interested in this product, feel free to contact us anytime!
