Automatic Mortising Machines

Automatic Mortising Machines
Automatic Mortising Machines
Automatic Mortising Machines

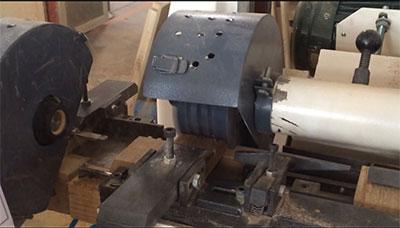

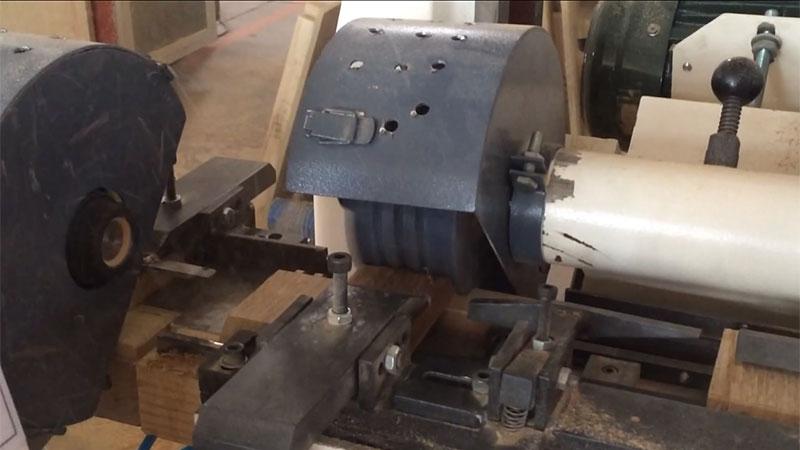

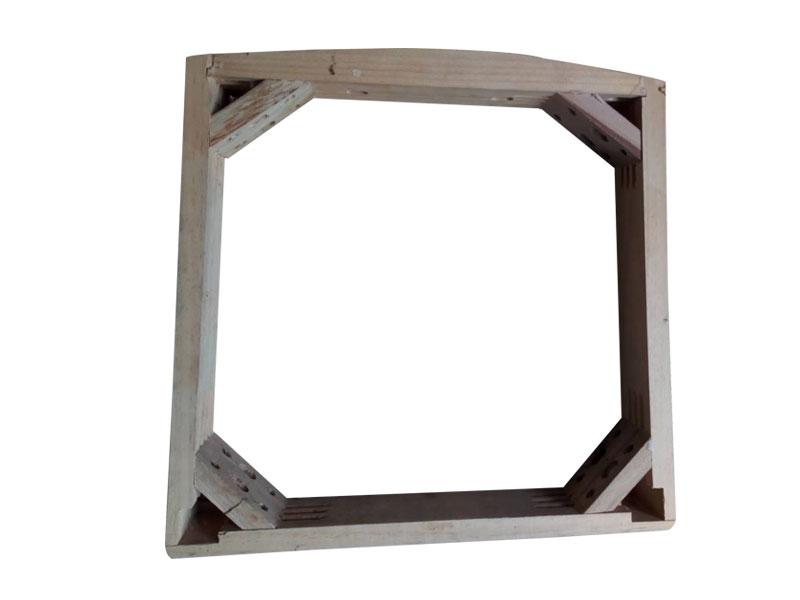

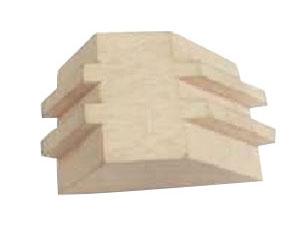

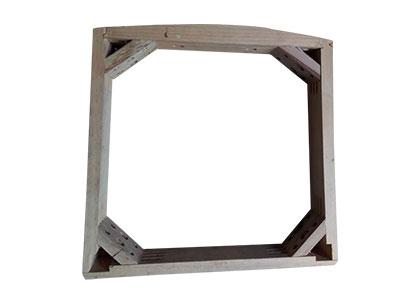

Mingda’s automatic mortising machines are suitable for mortising triangle wood and feature a high degree of automation. Thanks to high quality components, including a Long Ger boring head, Tianyang motor, and Schneider electrical elements, it features a high stability and high efficiency. The machine is PLC controlled, making it easy and safe to operate and adjust, as well as mortis triangle wood materials in different sizes.

Specification
Model MD-02T
Spindle motor 2.2KW×2
Oil pump horsepower 0.75KW×1
Maximum processing width 100mm
Maximum processing length 140mm
Minimum processing length 90mm
Mechanical dimensions(L×W×H) 1430×1460×1400mm
Machine weight 600KG
Send an Inquiry

If you are interested in this product, feel free to contact us anytime!
