Double Sided Brush Sanding Machine (Top and Bottom)

Double Sided Brush Sanding Machine (Top and Bottom)
Double Sided Brush Sanding Machine (Top and Bottom)

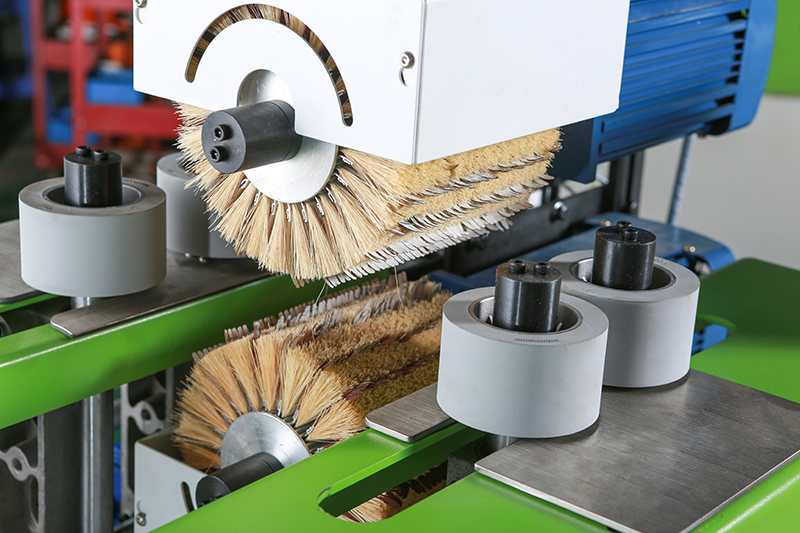

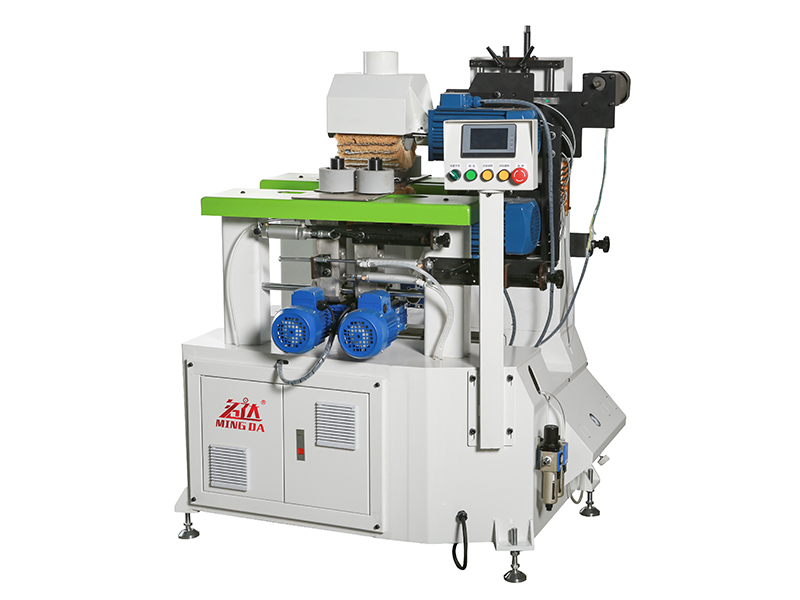

Mingda’s double sided sanding machine (top and bottom) is designed to brush sand the top and bottom sides of a variety of wood materials. It is widely used for processing long strip wooden workpieces, such as bare wood in dining chairs, for a fine and smooth surface. PLC controlled, it is easy for operators to learn, operate, and adjust, making it applicable for different wood materials.

Specification
Model MD-2P-Y
Spindle horsepower 1.5KW×2
Feeding horsepower 180W×4
Feeding speed(inverter speed) 6-15m/min
Minimum sanding length 370mm
Maximum sanding width 100mm
Maximum sanding height 100mm
Vacuuming mouth size 4 inch×2
Mechanical dimensions(L×W×H) 1250×930×1600mm
Machine weight 350KG
Send an Inquiry

If you are interested in this product, feel free to contact us anytime!
