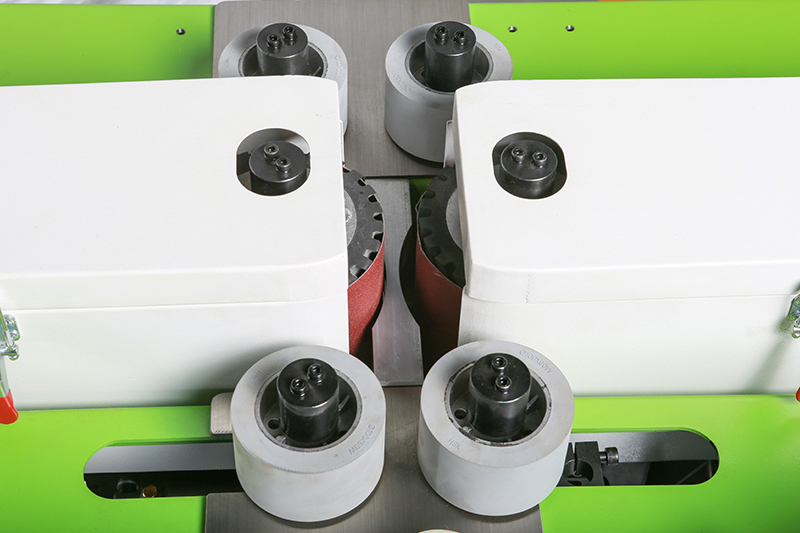

Double Sided Belt Sander (Left and Right)

Double Sided Belt Sanders

Mingda’s double sided belt sander (left and right) is designed to sand both the left and right sides of wood materials. If is widely used to process different the left and right sides of the wood materials. It is widely used in processing different wooden workpieces or sanding bare wood on dining room chairs. It is particularly useful for long, different wood type work pieces. PLC controlled, the double-sided belt sander is easy to operate and adjust and features an excellent durability and efficiently for an outstanding sanding process and a smooth surface result.

Specification
Model MD-2P-A
Spindle horsepower 1.5KW×2
Feeding horsepower 180W×4
Feeding speed(inverter speed) 6--15m/min
Minimum sanding length 370mm
Maximum sanding width 100mm
Maximum sanding height 100mm
Size of abrasive belt 1060×150mm
Vacuuming mouth size 4 inch×2
Mechanical dimensions(L×W×H) 1350×930×1100mm
Machine weight 350KG
Send an Inquiry

If you are interested in this product, feel free to contact us anytime!
