Double Sided Belt Sander (Top and Bottom)

Double Sided Belt Sander (Top and Bottom)
Double Sided Belt Sander (Top and Bottom)

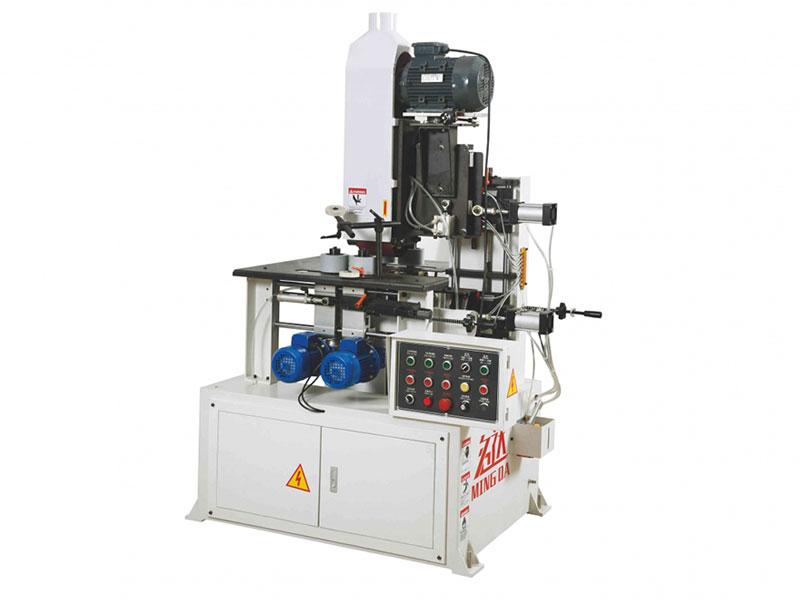

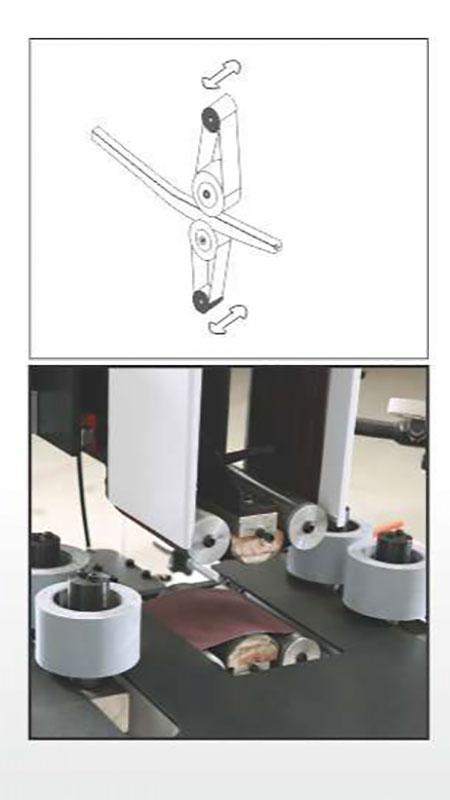

Mingda’s double sided belt sander (top and bottom) is designed to sand both the left and right side of wood materials. It is widely used to process different wooden work pieces or sand bare wood on dining room chairs. This sander is also applicable to long work pieces. PLC controlled, it is easy to operate and adjust, and requires very little time for operators to educate themselves on proper operation. It is applicable to an extensive array of wood materials.

Specification
Model MD-2P-D
Spindle horsepower 2.2KW×2
Feeding horsepower 180W×4
Feeding speed(inverter speed) 6-15m/min
Minimum sanding length 370mm
Maximum sanding width 100mm
Maximum sanding height 100mm
Size of abrasive belt 1590×150mm
Vacuuming mouth size 4 inch×2
Mechanical dimensions(L×W×H) 1100×930×1700mm
Machine weight 350KG
Send an Inquiry

If you are interested in this product, feel free to contact us anytime!
