Double Sided Belt Sander (Triangle) (Left and Right Sanding, Using Wide Belt with Higher Grit Size)

Double Sided Belt Sanders

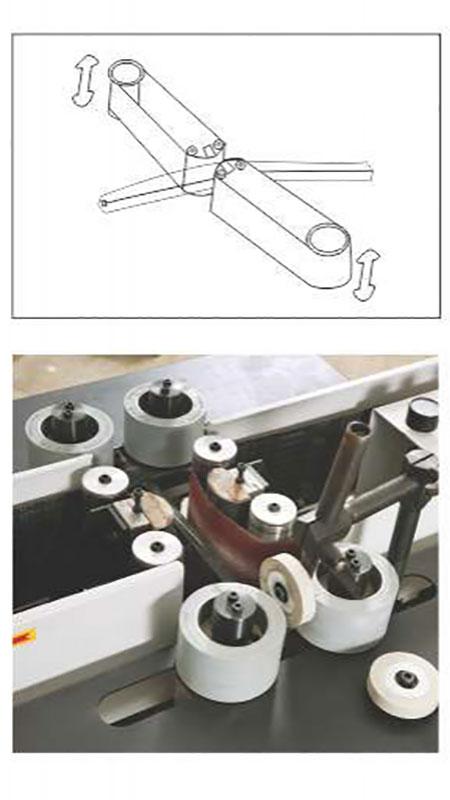

The double-sided belt sander (triangle) is designed to sand wooden materials on both sides and is traditionally accompanied by a double-sided belt sander (left and right). These two equipment pieces work in conjunction to complete coarse and fine sanding processes to ensure a smooth surface result.

PLC controlled, this sander is easy to operate and adjust, and is applicable to different wood materials, especially those that are longer than most pieces. A prime application example is the sanding of dining room chairs for a beautiful, smooth finish.

Specification
Model MD-2P-C
Spindle horsepower 2.2KW×2
Feeding horsepower 180W×4
Feeding speed(inverter speed) 6-15m/min
Minimum sanding length 370mm
Maximum sanding width 100mm
Maximum sanding height 100mm
Size of abrasive belt 1060×150mm
Vacuuming mouth size 4 inch×2
Mechanical dimensions(L×W×H) 1700×930×1150mm
Machine weight 350KG
Send an Inquiry

If you are interested in this product, feel free to contact us anytime!
